 Re: My Beduino Also on an early 2cv6 or ami. Just different jets. I installed one on my 2cv6, it pulls better uphill.
|
| February 11th, 2024, 11:44 am |
|
|
|
Geert
Firing on two.
Joined: July 10th, 2010, 12:35 pm
Posts: 1143
Location: Magyarország
|
Re: My Beduino Yes indeed , I forgot to mention these .
_________________
'T is een kwestie van geduld.........
Ez a türelem kérdése.........
|
| February 11th, 2024, 1:08 pm |
|
|
|
Roger V
Firing on two.
Joined: March 21st, 2013, 12:04 am
Posts: 1610
Location: Exeter, Devon
|
Re: My Beduino I did wonder if it would make a nice throttle body. Though I suppose a twin choke would work just as well.
_________________
If you can't fix it with a hammer, it's probably electrical (or, an electric fuel pump!) ....
|
| February 11th, 2024, 8:54 pm |
|
|
|
Roger V
Firing on two.
Joined: March 21st, 2013, 12:04 am
Posts: 1610
Location: Exeter, Devon
|
Re: My Beduino A little progress
Attachments:
20240214_191044 - Copy.jpg [ 4.48 MiB | Viewed 2585 times ]
_________________
If you can't fix it with a hammer, it's probably electrical (or, an electric fuel pump!) ....
|
| February 16th, 2024, 9:29 am |
|
|
|
Roger V
Firing on two.
Joined: March 21st, 2013, 12:04 am
Posts: 1610
Location: Exeter, Devon
|

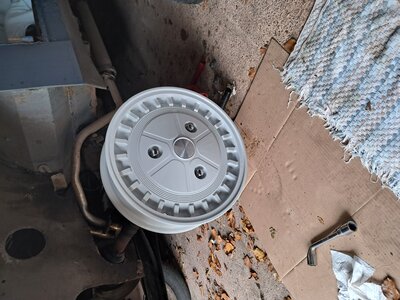

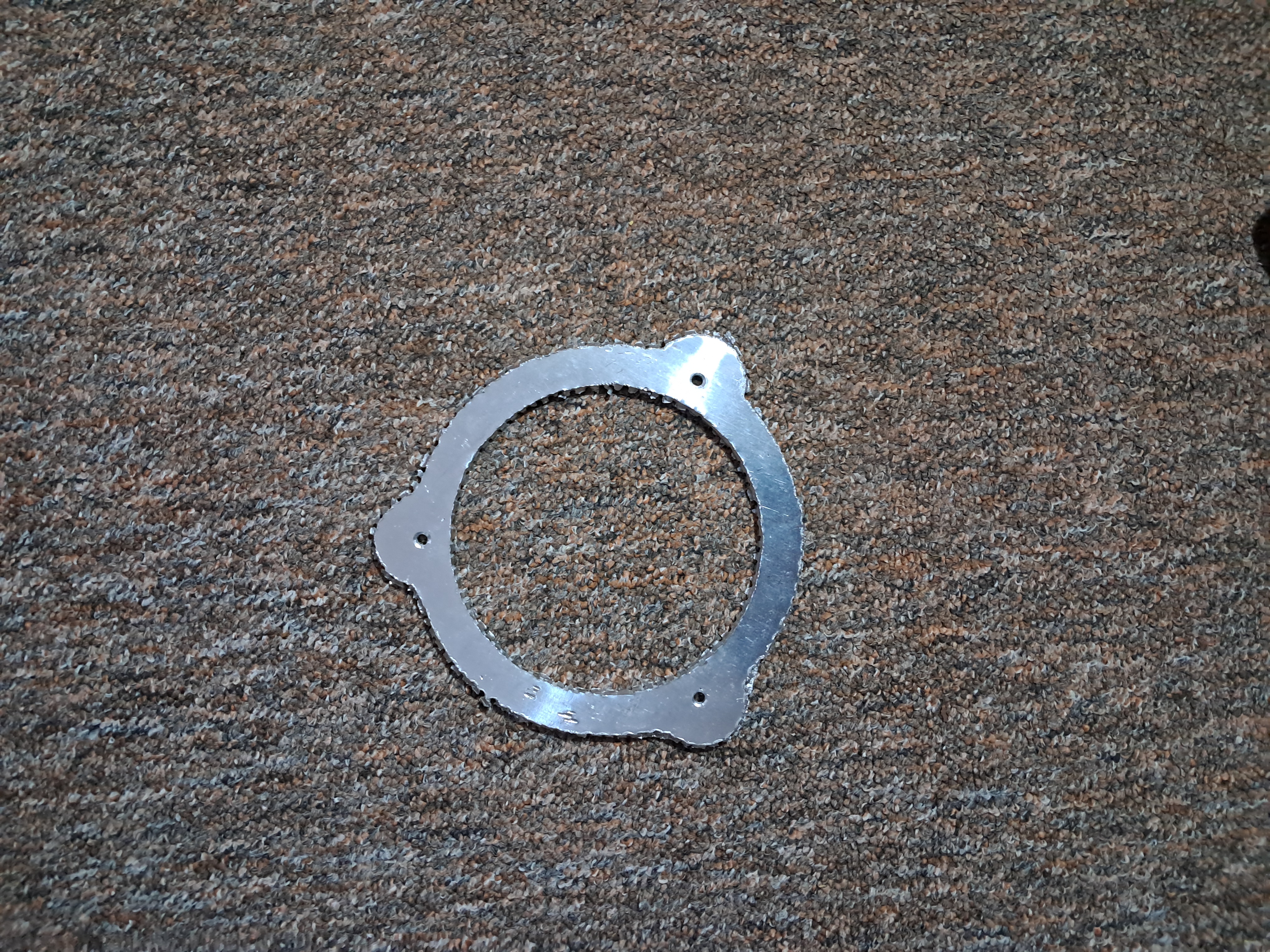

Re: My Beduino Some more progress  The spacer needs the rough edges cleaned back, but this is what it looks like in place. The stud holes have been drilled out since this image I will look into getting a pair of tyres fitted this week. 145/65 R15
Attachments:
![20240217_104958[1].jpg](./download/file.php?id=10001&t=1&sid=af8414c02edc70a21e790ffa657c2ede)
20240217_104958[1].jpg [ 3.13 MiB | Viewed 2536 times ]
![20240215_160214[1].jpg](./download/file.php?id=10000&t=1&sid=af8414c02edc70a21e790ffa657c2ede)
20240215_160214[1].jpg [ 5.08 MiB | Viewed 2536 times ]
_________________
If you can't fix it with a hammer, it's probably electrical (or, an electric fuel pump!) ....
|
| February 18th, 2024, 11:08 pm |
|
|
|
AZL57
Firing on two.
Joined: October 22nd, 2014, 10:59 pm
Posts: 2129
Location: South-Limburg
|
Re: My Beduino Are this visa wheels?
|
| February 19th, 2024, 7:26 pm |
|
|
|
Roger V
Firing on two.
Joined: March 21st, 2013, 12:04 am
Posts: 1610
Location: Exeter, Devon
|
Re: My Beduino GS/A At least, I understand them to be GS/A
_________________
If you can't fix it with a hammer, it's probably electrical (or, an electric fuel pump!) ....
|
| February 19th, 2024, 7:58 pm |
|
|
|
AZL57
Firing on two.
Joined: October 22nd, 2014, 10:59 pm
Posts: 2129
Location: South-Limburg
|
Re: My Beduino Oh yes that could be it.
|
| February 19th, 2024, 8:53 pm |
|
|
|
jasu
Firing on two.
Joined: August 8th, 2012, 11:00 am
Posts: 496
Location: Korpilahti, Finland
|
Re: My Beduino Bolt patterns:
Visa 3x115
GS/A 3x160
2CV 3x160
Those are definetly GSA wheels...
One solution to solve the problem with steering and GS wheels. Drill another holes 8mm further, on steering arm, or make new M7 threads to *part where is bearing and the steering arm bolted in...
But, I think the spacer is better, then the wheel will be at right spot. With that steering arm re-aligning, wheel bearings don't last as long as with original. Some friends made that modification, and they all find that problem with bearings...
One other solution is still to be tested, after I can have some spacers made. Put a 6mm spacer between wheel flange and bearing, so the flange comes 6mm out of hub. I think there is enough at drive shaft end, to make that. With photo that should be much easier to explain, maybe when that is tested..?
*Really, forgot that part name. Hub? No. Something else?)
|
| February 20th, 2024, 12:21 pm |
|
|
|
subarupete
Firing on two.
Joined: March 5th, 2009, 6:23 pm
Posts: 2242
Location: Near Monmouth
|
Re: My Beduino Citroen 2CV Front Hub (Wheel) Flange
|
| February 20th, 2024, 3:06 pm |
|
|
