 Rear Diff with Reduction Gears. Progressing with building a light-weight Rear Diff with Reduction Gear and Selector. The prop shaft will run through the cabin. Attachment:
IMG_0634.jpeg [ 377.93 KiB | Viewed 301262 times ]
Attachment:
IMG_0633.jpeg [ 348.5 KiB | Viewed 301262 times ]
|
| May 5th, 2025, 2:59 pm |
|
|
|
subarupete
Firing on two.
Joined: March 5th, 2009, 6:23 pm
Posts: 2257
Location: Near Monmouth
|
Re: Rear Diff with Reduction Gears. Attachment:
Rear Diff.jpeg [ 555.39 KiB | Viewed 288526 times ]
Attachment:
IMG_0644.jpeg [ 167.07 KiB | Viewed 288526 times ]
Attachment:
IMG_0645.jpeg [ 310.17 KiB | Viewed 288526 times ]
|
| May 8th, 2025, 9:14 am |
|
|
|
AZL57
Firing on two.
Joined: October 22nd, 2014, 10:59 pm
Posts: 2303
Location: South-Limburg
|
Re: Rear Diff with Reduction Gears. nice job.
|
| May 8th, 2025, 10:47 pm |
|
|
|
Roger V
Firing on two.
Joined: March 21st, 2013, 12:04 am
Posts: 1664
Location: Exeter, Devon
|
Re: Rear Diff with Reduction Gears. Awesome ...
_________________
If you can't fix it with a hammer, it's probably electrical (or, an electric fuel pump!) ....
|
| May 13th, 2025, 7:47 pm |
|
|
|
Geert
Firing on two.
Joined: July 10th, 2010, 12:35 pm
Posts: 1205
Location: Magyarország
|
Re: Rear Diff with Reduction Gears. I am always amazed at how people can make or modify technical things .
My son is the same way, often making a sketch of how it should be, the details are then in his head, or working out during construction .
_________________
'T is een kwestie van geduld.........
Ez a türelem kérdése.........
|
| May 13th, 2025, 8:22 pm |
|
|
|
subarupete
Firing on two.
Joined: March 5th, 2009, 6:23 pm
Posts: 2257
Location: Near Monmouth
|

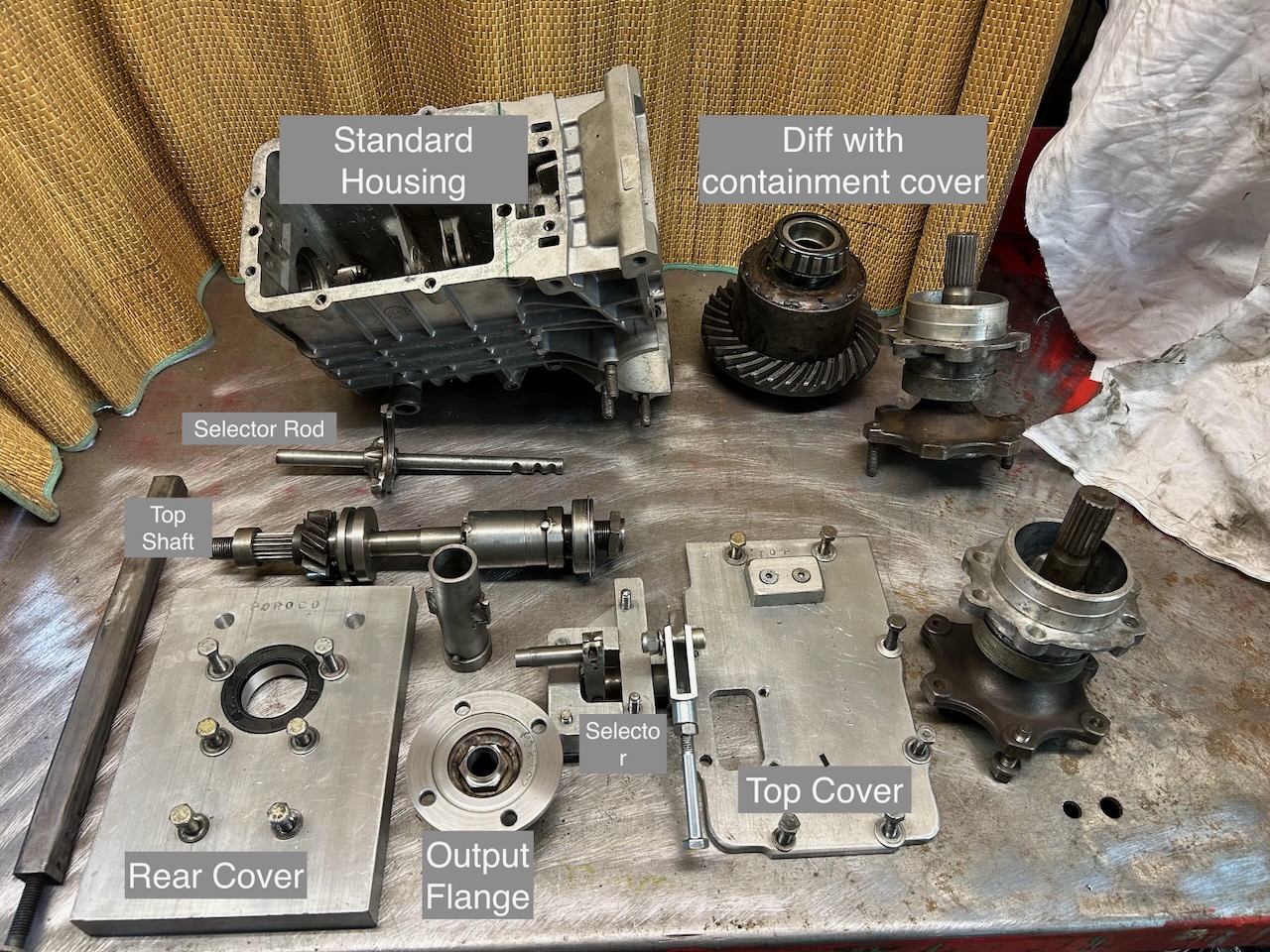

Re: Rear Diff with Reduction Gears. Now its warmer  Fabricated all the parts, now to final assembly? Attachment:
IMG_1097 copy.jpeg [ 944.25 KiB | Viewed 9622 times ]
Attachment:
IMG_1098 copy.jpeg [ 971.8 KiB | Viewed 9622 times ]
Attachments:
IMG_1096 copy.jpeg [ 993.02 KiB | Viewed 9622 times ]
|
| February 23rd, 2026, 12:15 pm |
|
|
|
subarupete
Firing on two.
Joined: March 5th, 2009, 6:23 pm
Posts: 2257
Location: Near Monmouth
|
Re: Rear Diff with Reduction Gears. Almost done, new shafts made, need heat traetment. Front Box. Attachment:
IMG_0332.jpeg [ 879.02 KiB | Viewed 180 times ]
Rear Diff/Box Attachment:
IMG_0183.jpeg [ 863.38 KiB | Viewed 180 times ]
ps Fakebook is easier to. use, just shiiiiiiiiiiiiiit.
|
| June 15th, 2026, 6:11 pm |
|
|
|
jasu
Firing on two.
Joined: August 8th, 2012, 11:00 am
Posts: 510
Location: Korpilahti, Finland
|
Re: Rear Diff with Reduction Gears. How about the weight? On my rear diff, with reduction gears, with disc brakes the scale said 27 kg...
Didn't check the weight without brakes, I should check but maybe next time it is out..?
|
| June 16th, 2026, 9:14 am |
|
|
|
subarupete
Firing on two.
Joined: March 5th, 2009, 6:23 pm
Posts: 2257
Location: Near Monmouth
|
Re: Rear Diff with Reduction Gears. With brakes 28Kg , but cut down bellhousing, cut down input shaft and no syncro parts:)
|
| June 16th, 2026, 9:40 am |
|
|
|
jasu
Firing on two.
Joined: August 8th, 2012, 11:00 am
Posts: 510
Location: Korpilahti, Finland
|
Re: Rear Diff with Reduction Gears. My bellhouse is also cut, as much as possible. Not cut any other shafts, but input shaft a little bit. Some photos can find on my topic, if photos is possible to see. Thanks to photo bucket, photos are there but not sure if they are visible nowadays... I have them somewhere, need to upload them to another place to hotline them. Some day, some year..?
|
